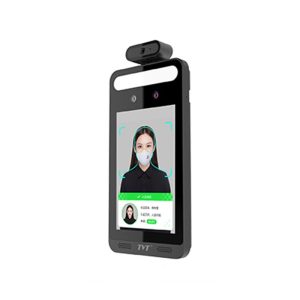

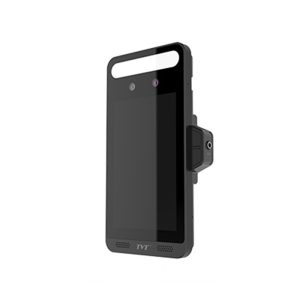

Face Recognition Access Control Terminal, ระบบสแกนอุณหภูมิ สั่งเปิด/ปิดประตู
ด้วยการจดจำใบหน้า, เก็บข้อมูลเข้าออก, เตือนไม่ใส่แมส, เตือนบุคคลอุณหภูมิสูง, มีระบบแจ้งเตือนทันที
รายละเอียดสินค้า

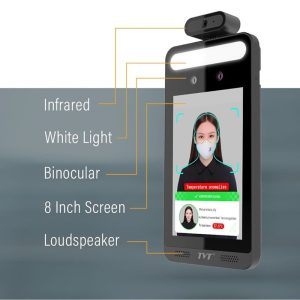

- 8 inch LCD screen

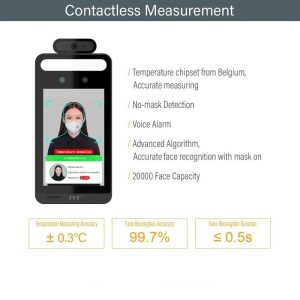

- High-accutact body temperature measurement
- Non-contact body temperature measurement
- Human-sounding voice prompt
- Real-time face mask detection
- Face liveness detection technology distinguishing real faces form non-real face spoof attacks
- Highly accurate face recognition using deep learning algorithm
- Stand-alonr device, ready for networking
Specification
| Model | TD-E2128-TM |
| Performance | |
| OS | Embedded Linux |
| Storage | 8Gb DDR3+16GB EMMC |
| Screen | |
| Display Screen | 8inch LCD scree; resolution: 1280×800; contrast: 500:1 |
| Brightness | 500 lux |
| Control Interface | 12C |
| Temperature Measuring | |
| Temperature Measurig Range | 32-43 ํC |
| Accuracy | +- 0.3 ํC |
| Measuring Distance | 0.3-0.5m |
| Face Recognintion | |
| Sensor | 1/2.7 |
| Lens | 2MP dual-lens, f=3.97 [email protected] |
| Lens Mount | M12 |
| WDR | 120db |
| Height Range of Face Recognition | 1.2m-2.2 (the recommended installation height is 1.45m ) |
| Face Recognition Distance | 0.3m-2m |
| Recognition Duration | Face: 1 : N |
| Face Capacity | <0.5 s per person |
| Recognition Accuracy | 20,000 |
| Supplementary Light | 99.7% |
| Supplementary Lignt | |
| Fill-in Light | Soft white Lght, IR light |
| White Light Distance | 1-3 |
| Smart Linkage | |
| Screen Wakeup | Yes |
| Light Adjustment | Yes |
| Snapshot | Yes |
| Audio | |
| Two-way Talk | Yes (noise reduction and echo) |
| Audio Input | 1CH built-in MIC |
| Audio Output | Built-in speaker |
| Interface | |
| Network Interface | 108100Mbps self-adaptive Ethernet portx1 |
| Alarm Input | 2CH |
| Alarm Output | 2CH |
| Wiegand Interface | Wiegand input/output (26/34) |
| RS485 | RS485x1 (half duplex) |
| Door Lock Output | Relay output, NO/NC (optional), delay setting supprted |
| SD Card Interface | 1 micro SD card slot, up 128G |
| USB Interface | USBx1 |
| Anti-Tamper Interface | 1 |
| Exit Button | 1 |
| Others | |
| Power | 12V@1A |
| Power Management | Screen sleep, screen protection |
| Power Consumption | <12W |
| Weight | Approx. 1.2KG |
| Install ation | Wall Mounting, Pole Mounting, Embedded Installation, Desktop |
| Protection | Surge Protection and Voltage Transient Protection |
| Certifcate | CE, FCC |
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) |
| Working Environment | 0 ํC-40 ํC, <95% (non-condensing) |
| Dimensions (mm) | 301.8×138.6×34.2 |
Available Model
| Availadel | TD-E2128-TM | Face Recognition Terminal |
